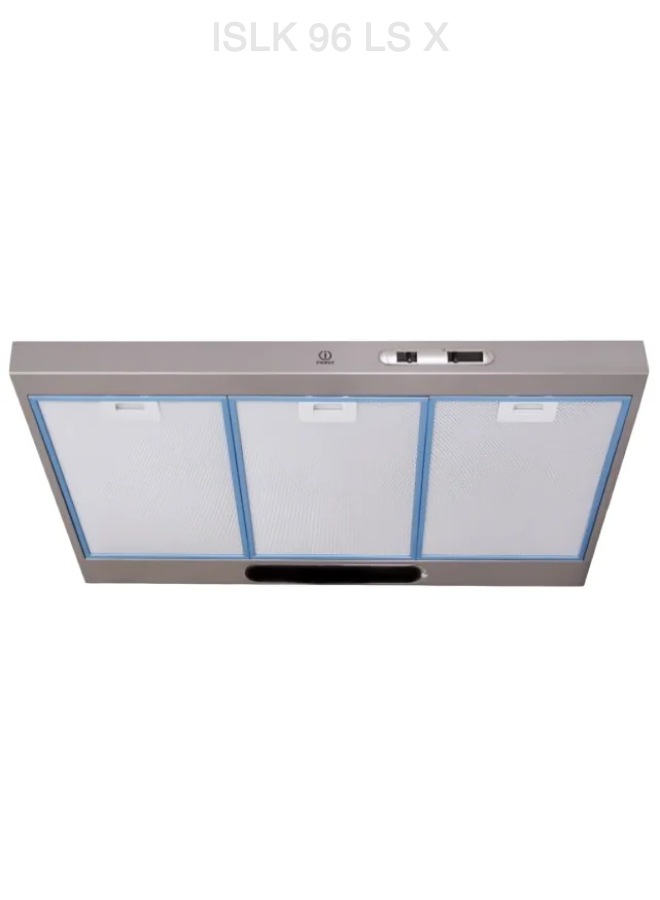

Indesit Built-In Bundle 90 CM, Hob IN 9522 IX + Hood ISLK 96 LS X + Oven IGESM 53 G3

Wall-mounted cooker hood  Control setting: Touch control  Max. noise level: 70 dB(A)re 1 PW  Maximum extraction rate by extraction operation: 650 m³/h  Energy class: B  Gorenje  Essential Line  Dimensions (W×H×D): 89.8 × 6 × 45.6 cm

Polyurethane filter
Benefits of polyurethane foam
Unique aluminum grease filters are enhanced with a special polyurethane foam that eliminates up to 98% of all grease particles and other impurities.

Touch Free coating
Shiny and fingerprint-free finish

adapter Pro
For cooking without odors and stains on the cabinetry
Patent-pending Adapt Air Pro technology efficiently extracts unpleasant odors, steam, and impurities from the air in your kitchen. Owing to even air suction across the filter surface, even at the lowest speed setting, frequent filter cleaning is not required.

led light
See what you’re cooking
LED lighting provides excellent and highly efficient illumination of the cooking hob and represents an important aesthetic and functional element in the kitchen.

Re-circulating hoods
Re-circulating hoods draw in steam and odor saturated air through a filter, then returning the treated air into the kitchen. If ducting for extraction is not possible, then re circulation may be another option. In this case, the air is drawn through a charcoal filter that removes cooking odors and steam, and the clean air is recirculated back into the kitchen.

Noise level
More power with less noise
In today’s homes, the kitchen is a new focal point, which in turn has focused attention on noise levels produced by cooker hoods.

Useful tips

• Remember to switch the cooker hood on before starting to cook, as this maximizes the hood’s capacity.
  • Leave the cooker hood running for another 15 minutes once you have finished cooking to remove the last few traces of cooking odors.
  • Remember never to open the kitchen window when using a cooker hood, as this affects air circulation and cancels out the low pressure.
  • Choose a cooker hood that is at least as wide as your hob to achieve the best effect.

What capacity do you need?
What sort of capacity should a new cooker hood have? This depends largely on the size of the kitchen. A good rule of thumb is that the hood should be able to replace the air 10 to 20 times per hour. For instance, if a kitchen measures 4 x 4 m with a ceiling height of 2.5 m, the cooker hood should replace approximately 400-800/m3 of air per hour.

Thus, the necessary extraction capacity is determined by the volume of your kitchen.
Calculation of the hood capacity that you need is:
10 x volume of your kitchen (volume = width x height x depth).

There will always be some loss of pressure when installing a hood. That is why it is important to observe the following rules:

• Always observe the hood’s recommended venting diameter (O) specified on the venting tube or pipe.
• Where possible, use smooth pipes to minimize air resistance.
• Try to make the installation as short as possible and with as few bends in the pipes as possible.
• You want gentle curves in the pipe rather than sharp bends so that the air can pass through unhindered, minimizing pressure loss.

Made in EU/PL
